Download the WANem iso image. Burn it on a CD and start your computer. You can also download a WANem file readable with a VMware server or player.

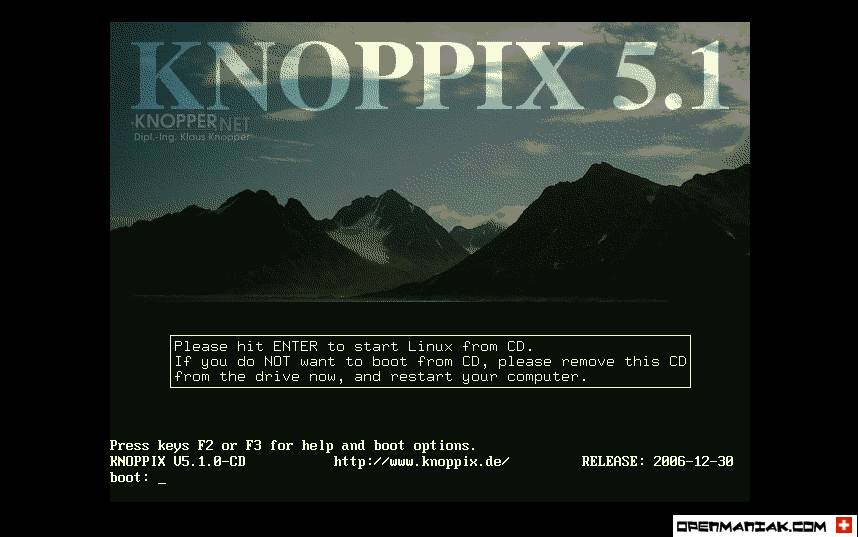

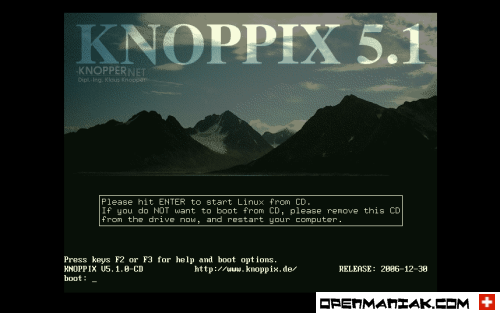

Start WANem:

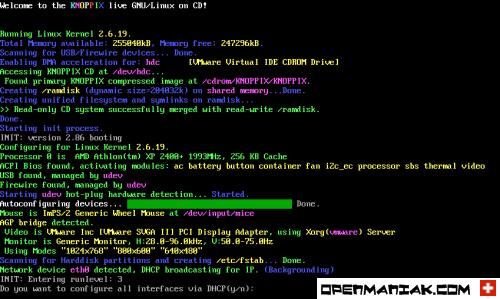

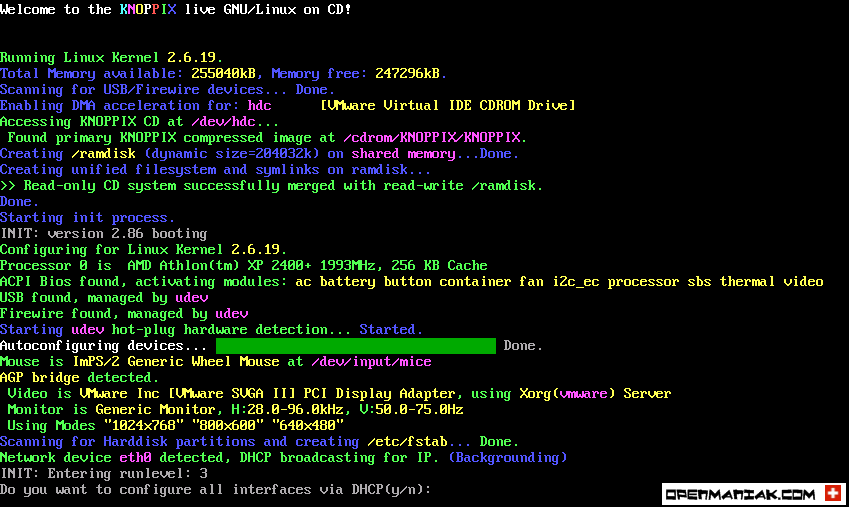

The Knoppix Linux is starting:

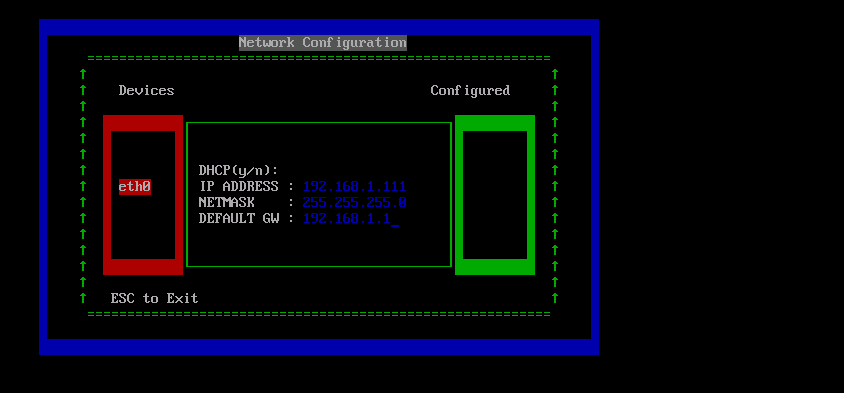

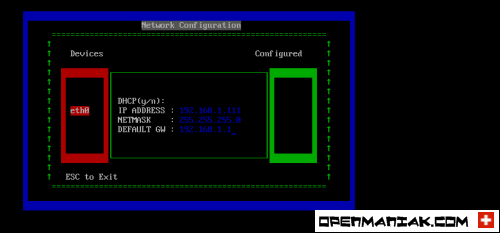

IP address selection:

WANem then asks you for an IP address. Press "y" to get a dynamic IP address provided by your DHCP server or "n" to set a static IP address. We chose this last option in our example.

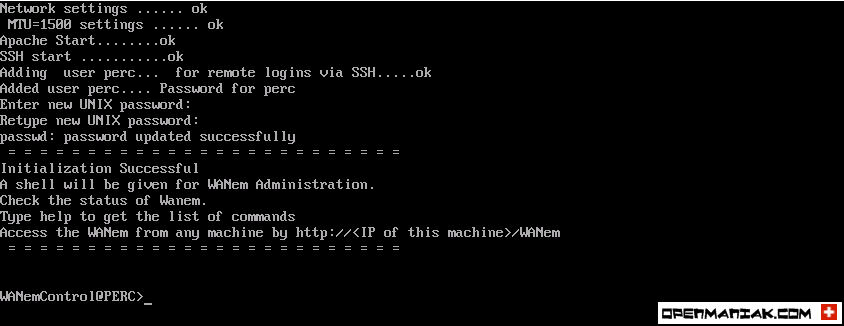

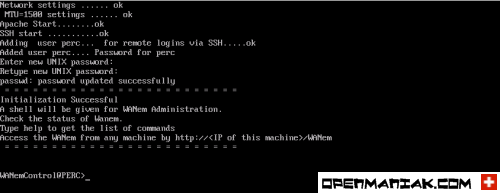

Final step:

Enter the password of your choice.
You will need it if you want to remotely access the Knoppix Linux platform via SSH.

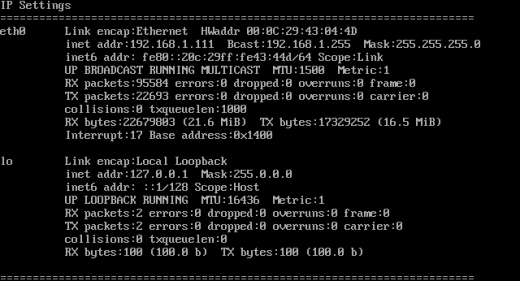

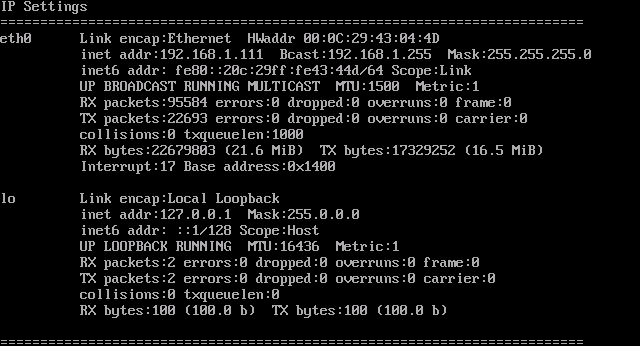

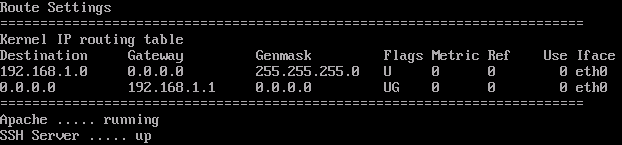

Check the IP address got by WANem:

WANemControl@PERC>status

WANem platform:

You can now access WANem with your web browser:

http://192.168.1.111/WANem
To get full details about how to use WANem, continue with the basic and advanced WANem mode tutorials.

You can also access the Knoppix/Linux level with SSH.
username is "perc" and the password has been set previously at the end of the knoppix boot.

WANem CLI:

The "help" command provides the available commands list:

WANemControl@PERC>help
help -- Displays this help.
about -- About WANem
clear -- Clear the Screen
reset -- Reset the network setting and services
shutdown -- Shutdown the System
restart -- Restart the System
status -- Check the status of Network settings and services
wanemreset -- Reset WANem settings from here if GUI is very slow
assign -- Assign an IPAddress to a device usage:assign
quit -- Quit the shell
