1. CASE PRINCIPLE 2. PICTURE 3. CONFIGURATIONS 4. SHOW COMMANDS

See a similar scenario with the Quagga router.

1. CASE PRINCIPLE

Vyatta version used: VC 2.0 Feb 20, 2007
In this second case study, we will see an example where two Desktops are connected between each other through two routers, one Cisco 2651 router and one Vyatta router.
The routers use the OSPF dynamic routing protocol to advertise the IP networks.

Read the Vyatta policy about the Community Edition.

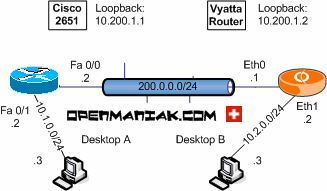

2. PICTURE

vyatta cisco case study 2651 ospf Functionalities tested:

(click on the web links to have more details about a protocol)

Interface settings
OSPF - backbone area
SSH access
Telnet access
Web access

3. CONFIGURATIONS

CISCO ROUTER VYATTA ROUTER

interface FastEthernet0/0
  description link to Vyatta router
  ip address 200.0.0.2 255.255.255.0
  duplex full
  speed 100 edit interfaces ethernet eth0
  set description "link to Cisco router"
  set address 200.0.0.1 prefix-length 24
  set duplex full
  set speed 100

interface FastEthernet0/1
  description link to Desktop A
  ip address 10.1.0.2 255.255.255.0
edit interfaces ethernet eth1
  set description "Desktop B"
  set address 10.2.0.1 prefix-length 24

interface Loopback1
  ip address 10.200.1.1 255.255.255.255 edit interfaces loopback lo
  set address 10.200.1.2 prefix-length 32

router ospf 1

  network 10.1.0.0 0.0.0.255 area 0
  network 10.200.1.1 0.0.0.0 area 0
  network 200.0.0.0 0.0.0.255 area 0 set protocols ospf4
edit protocols ospf4
  set router-id 10.200.1.2
  set area 0.0.0.0 interface eth0 address 200.0.0.1
  set area 0.0.0.0 interface eth1 address 10.2.0.2
  set area 0.0.0.0 interface lo address 10.200.1.2

hostname cisco set system host-name Vyatta-Router

line vty 0 4
  no login
ip http server
set service telnet

set service http
set service ssh

enable secret password edit system login user vyatta
  set authentification plaintext-password password

Desktop A Desktop B

ip address:
subnet mask:
gateway:
10.1.0.3
255.255.255.0
10.1.0.2

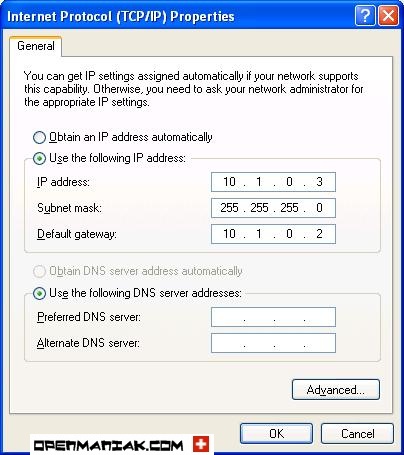

Screenshot ip address:
subnet mask:
gateway:
10.2.0.3
255.255.255.0
10.2.0.2
Screenshot

SEE THE ENTIRE CONFIGURATION OF THE DEVICES:

2651 Cisco router
Vyatta router

You can use a Cisco 3750 L3 switch instead of the 2651 Cisco router:
3750 switch L3

4. SHOW COMMANDS

ROUTING TABLE

vyatta@Vyatta-Router#show route

vyatta output show route

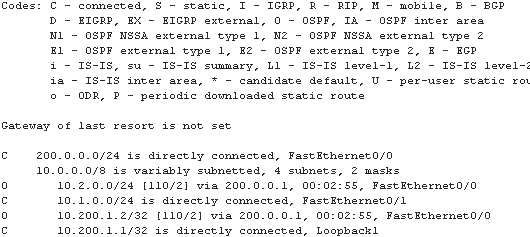

cisco#show ip route

cisco output show ip route

ROUTE FOR A SUBNET

vyatta@Vyatta-Router#show route | match 10.1.0.0

vyatta output show route | match

cisco#show ip route | include 10.2.0.0

cisco output show route | include

ROUTE FOR A NEXT-HOP

vyatta@Vyatta-Router#show route next-hop 200.0.0.2

cisco output show route next-hop

cisco#show ip route | include 200.0.0.1

cisco output show ip route | include

OSPF NEIGHBORS

vyatta@Vyatta-Router#show opsf4 neighbor

vyatta output show opsf4 neighbor

cisco#show ip ospf neighbor

cisco output show ip ospf neighbor

OSPF DATABASE

vyatta@Vyatta-Router#show opsf4 database

vyatta output show opsf4 database

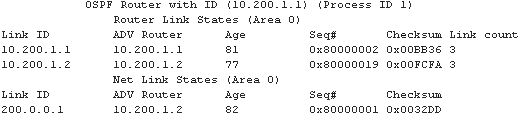

cisco#show ip ospf database

cisco output show ip ospf database

INTERFACE STATS 1

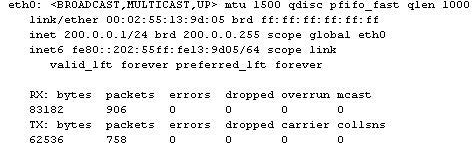

vyatta@Vyatta-Router#show interfaces ethernet eth0 statistics

vyatta output show interfaces ethernet eth0 statistics

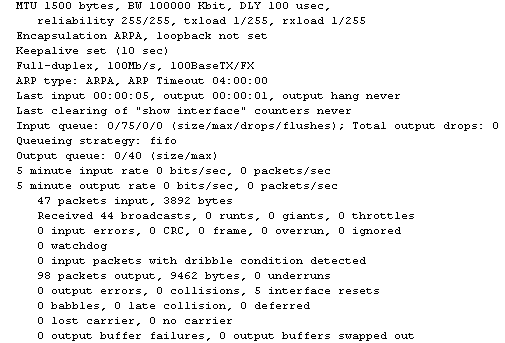

cisco#show interfaces FastEthernet 0/0

cisco output show interfaces FastEthernet 0/0

INTERFACE STATS 2

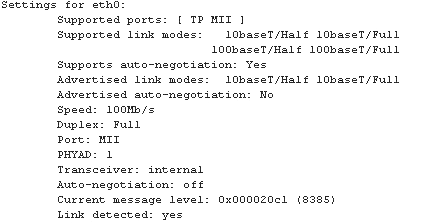

vyatta@Vyatta-Router#show interfaces ethernet eth0 physical

cisco#show ip interface brief

cisco output show ip interface brief

END TO END CONNECTIVITY CHECKS:

From Desktop A
C:\>tracert 10.2.0.3

windows output tracert

From Desktop B
C:\>tracert 10.2.0.3

Top of the page

CISCO ROUTER	VYATTA ROUTER
interface FastEthernet0/0 description link to Vyatta router ip address 200.0.0.2 255.255.255.0 duplex full speed 100	edit interfaces ethernet eth0 set description "link to Cisco router" set address 200.0.0.1 prefix-length 24 set duplex full set speed 100
interface FastEthernet0/1 description link to Desktop A ip address 10.1.0.2 255.255.255.0	edit interfaces ethernet eth1 set description "Desktop B" set address 10.2.0.1 prefix-length 24
interface Loopback1 ip address 10.200.1.1 255.255.255.255	edit interfaces loopback lo set address 10.200.1.2 prefix-length 32
router ospf 1 network 10.1.0.0 0.0.0.255 area 0 network 10.200.1.1 0.0.0.0 area 0 network 200.0.0.0 0.0.0.255 area 0	set protocols ospf4 edit protocols ospf4 set router-id 10.200.1.2 set area 0.0.0.0 interface eth0 address 200.0.0.1 set area 0.0.0.0 interface eth1 address 10.2.0.2 set area 0.0.0.0 interface lo address 10.200.1.2
hostname cisco	set system host-name Vyatta-Router
line vty 0 4 no login ip http server	set service telnet set service http set service ssh
enable secret password	edit system login user vyatta set authentification plaintext-password password

Desktop A		Desktop B
ip address: subnet mask: gateway:	10.1.0.3 255.255.255.0 10.1.0.2 Screenshot	ip address: subnet mask: gateway:	10.2.0.3 255.255.255.0 10.2.0.2 Screenshot
