Trixbox can be downloaded in two forms:

An iso file:
This file is burned on a CD and installed on a hard drive after the computer power up.
You will need a dedicated computer because the installation will erase all the information on the hard drive!

A Vmware file:
This file can be read with a Vmware player or server.
With Vmware you have the advantage to use trixbox on your Desktop and thus you don't need another computer. This is particularly interesting for test purposes.

The Vmware players and servers are free. The player can run virtual machines but not create them.
Vmware download page.

In both installation types, the installation is automated and only requires a little user input.



In our tutorial, we will use the trixbox Vmware image and read it with the Vmware player. The goal is to install trixbox and create three phone numbers called "extensions".
If you choose the CD install, you will be first asked some usual questions such as the time zone you are in or the type of keyboard you are using. Once the questions answered, you can proceed with theand then you can follow the tutorial below.

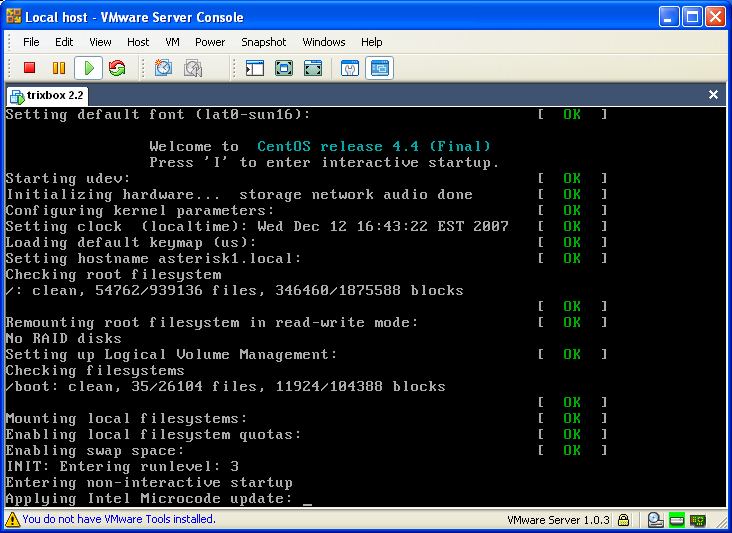

Start trixbox with the Vmware player:
The CentOS Linux is starting, the trixbox services are then launched.

trixbox Vmware installation

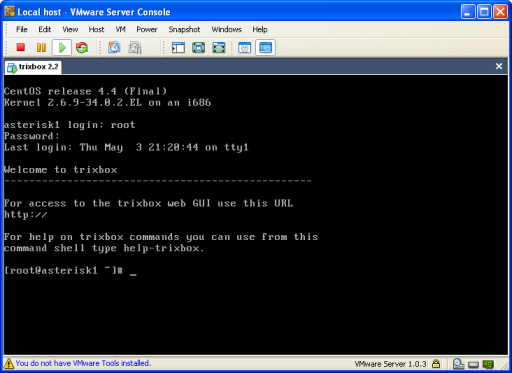

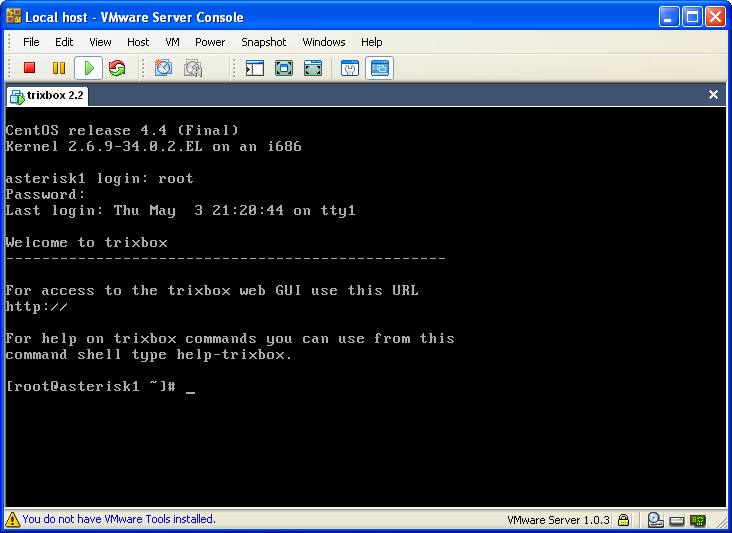

Login at Linux level with the following default credentials:

login: root
password: trixbox
trixbox Vmware root login

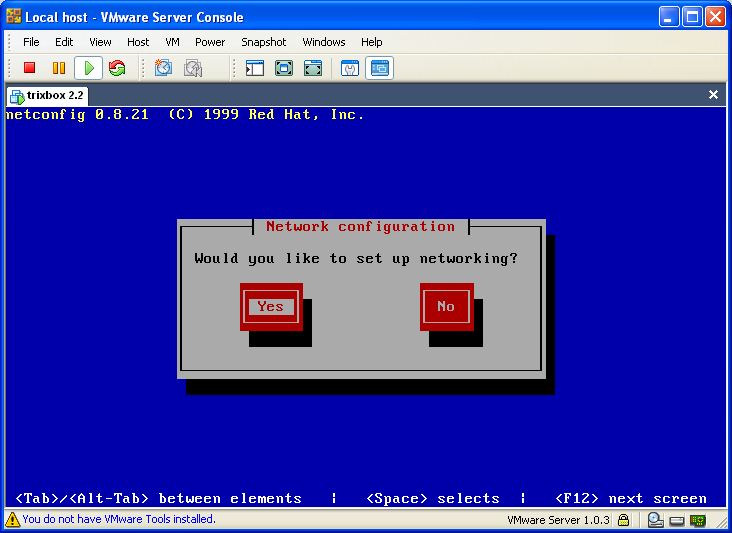

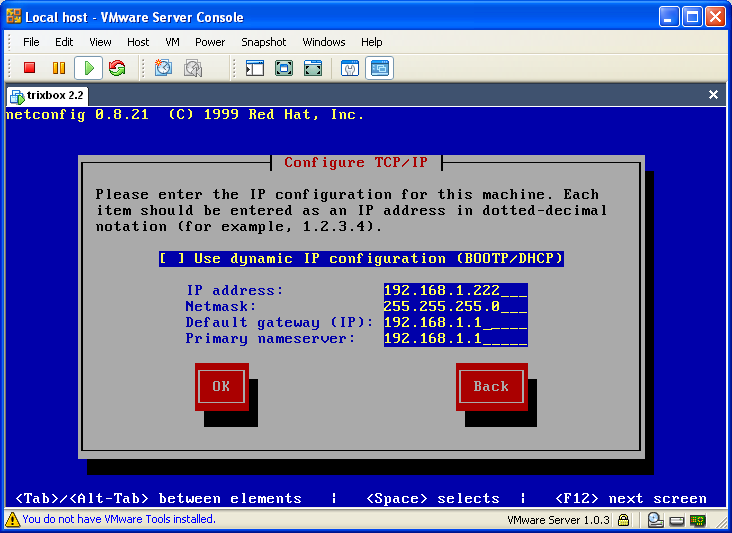

Configure the IP settings:

#netconfig
trixbox netconfig

Enter your static IP settings.
You can also choose to request a dynamic IP address instead, even though this is not recommended for a server.

IP address:
Netmask:
Default gateway (IP):
Primary nameserver:
192.168.1.222
255.255.255.0
192.168.1.1
192.168.1.1
trixbox Vmware ip settings

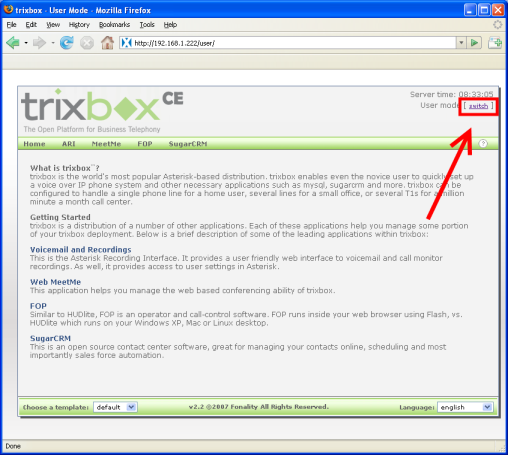

Once the Linux has an IP address, you can access the trixbox platform with a web browser such as Firefox.

http://192.168.1.222
trixbox user access

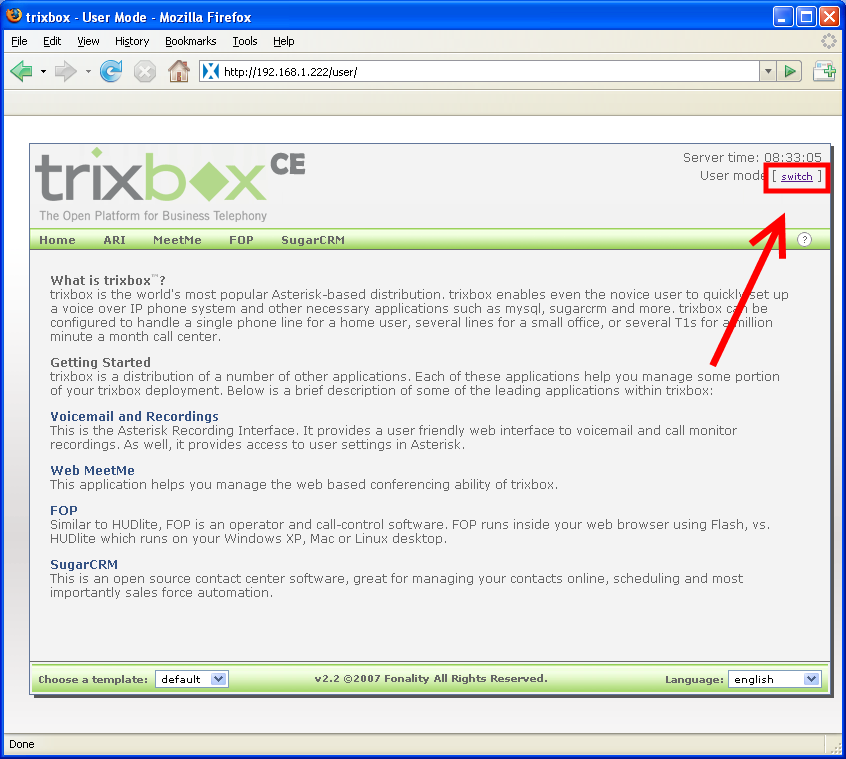

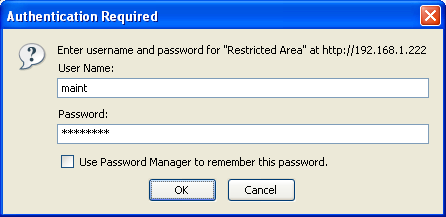

Enter the admin mode:

Click on the "switch" web link at the upper right corner of the screen.
A popup should appear. Enter the following default credentials:

login:
password:
maint
password
trixbox maint access

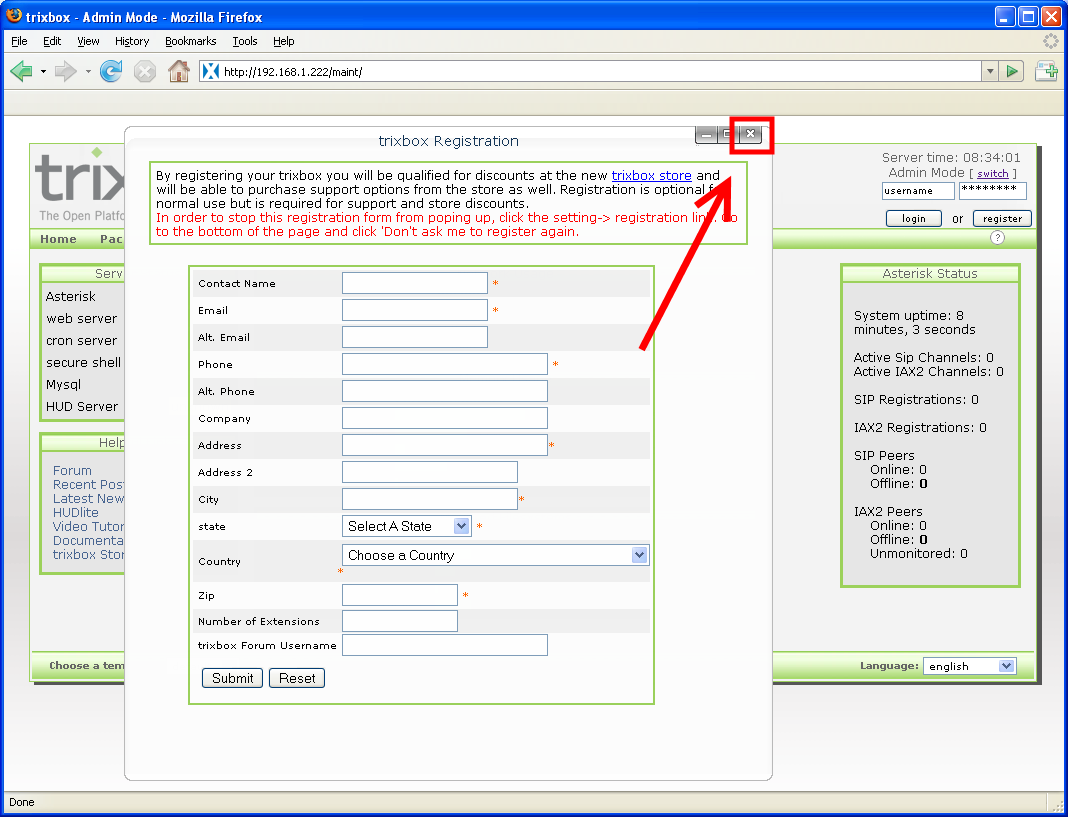

Close the registration page.

Click on the cross in the upper right section of the registration page.
trixbox registration

The trixbox platform.

trixbox admin access

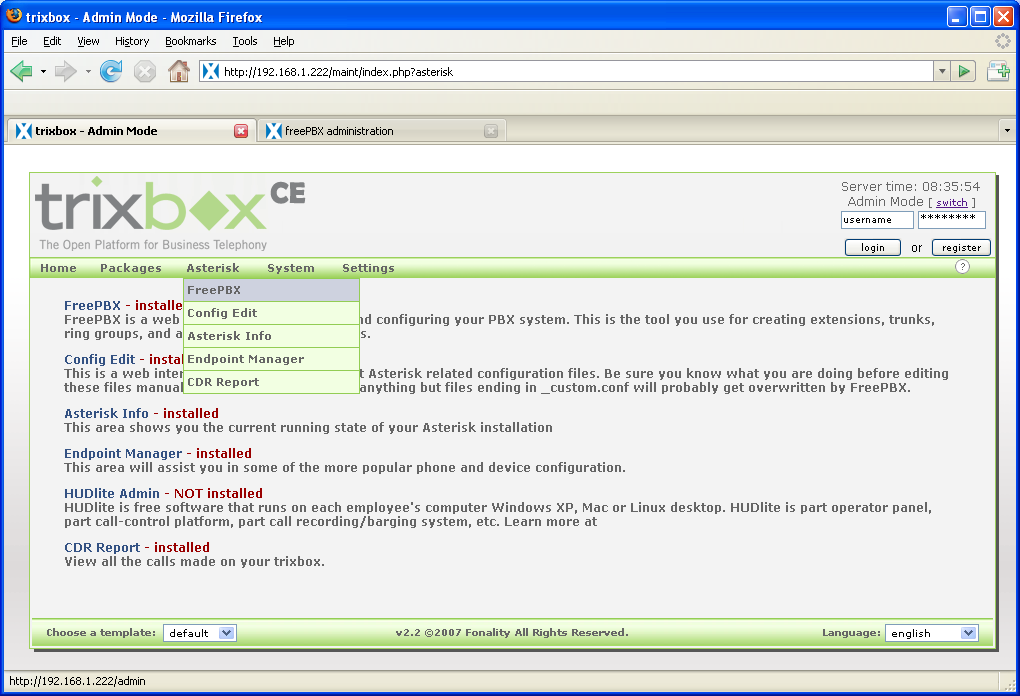

Let us configure Asterisk via its web platform: FreePBX.

Select Asterisk -> FreePBX
trixbox freepbx

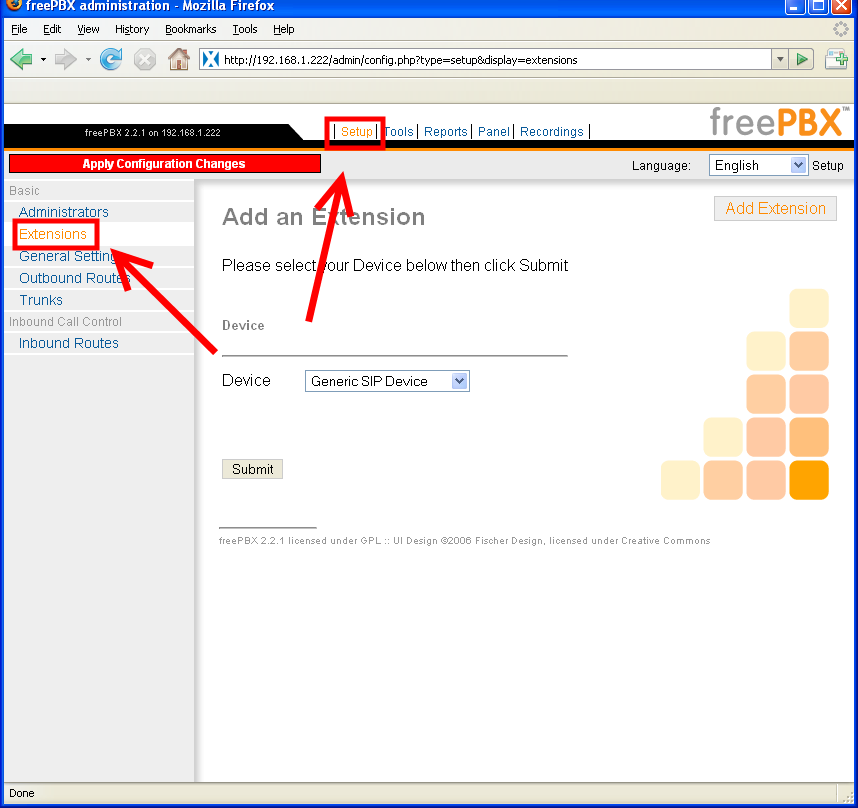

Click on the setup tab to configure the extensions which are the phone numbers.

Setup tab -> extensions section
trixbox freepbx extensions

Create three extensions

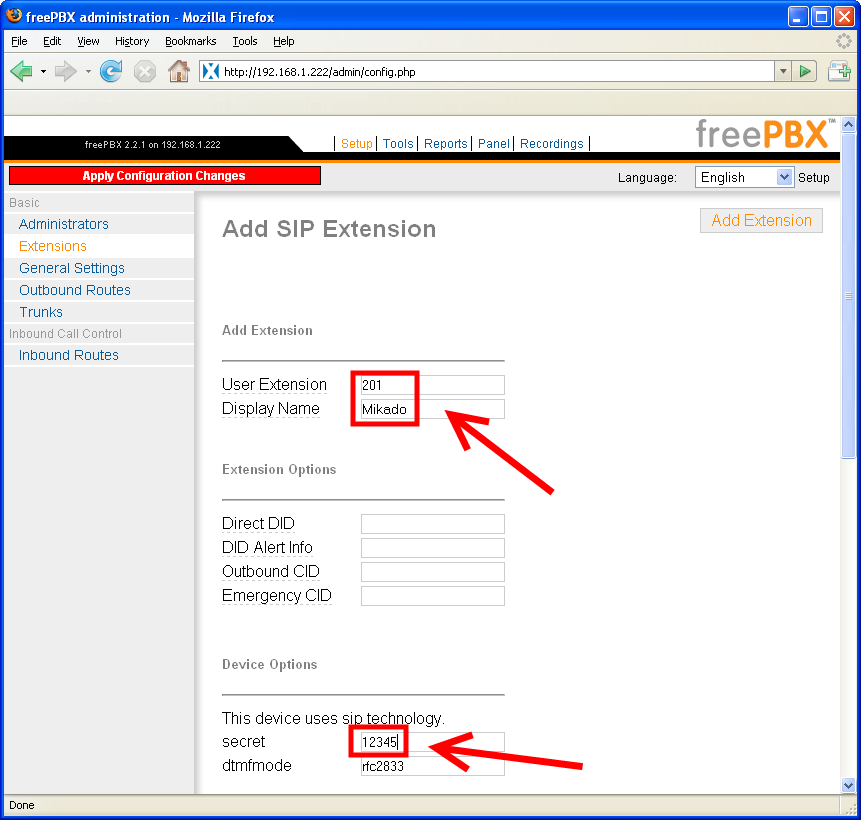

Create the first extension. In the "add an extension" window:

Click on the "submit" button
Enter the following data:

User Extension: 201
Display name: Mikado
secret: 12345
Click on the "submit" button at the bottom of the page to create the extension.
trixbox freepbx extension 201

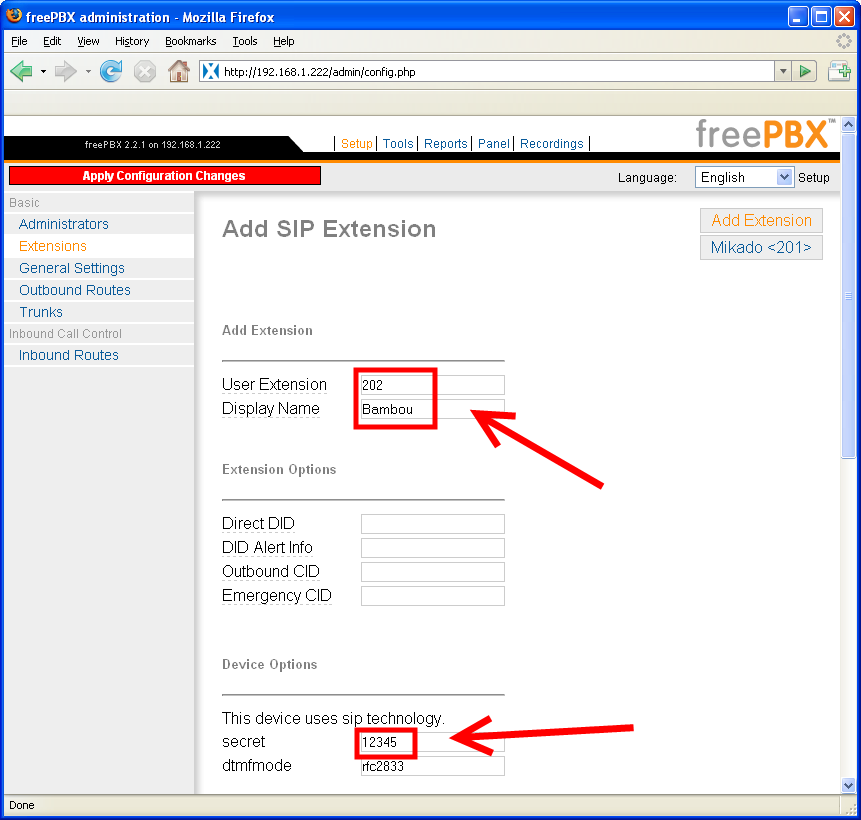

Create the second extension. In the "add an extension" window:

Click on the "submit" button
Enter the following data:

User Extension: 202
Display name: Bambou
secret: 12345
Click on the "submit" button at the bottom of the page to create the extension.
trixbox freepbx extension 202

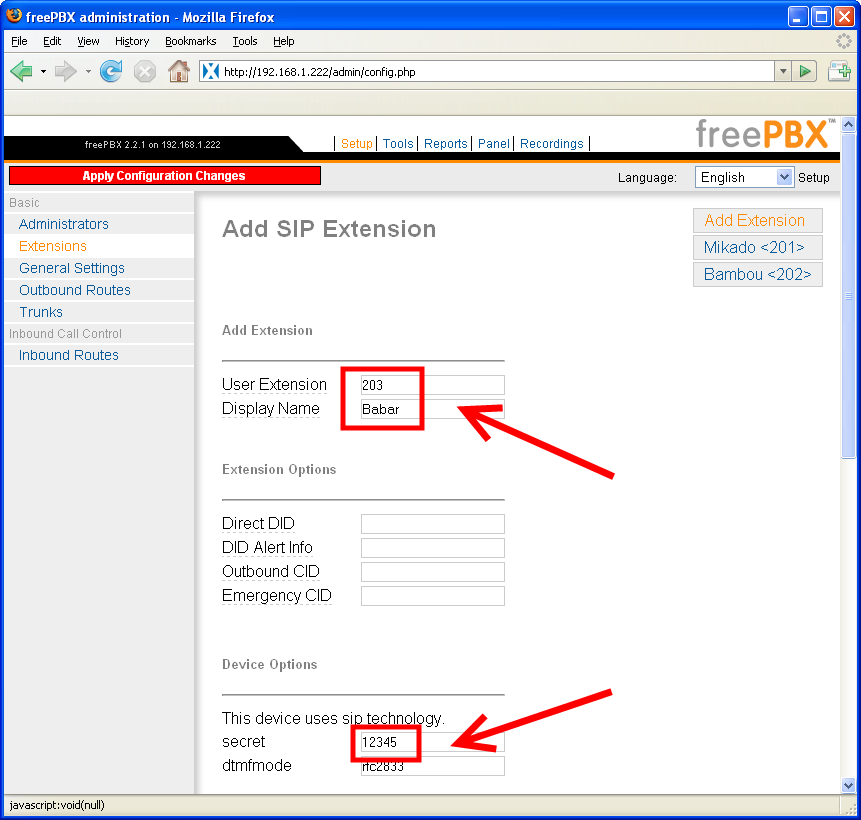

Create the first third. In the "add an extension" window:

Click on the "submit" button
Enter the following data:

User Extension: 203
Display name: Babar
secret: 12345
Click on the "submit" button at the bottom of the page to create the extension.
trixbox freepbx extension 203

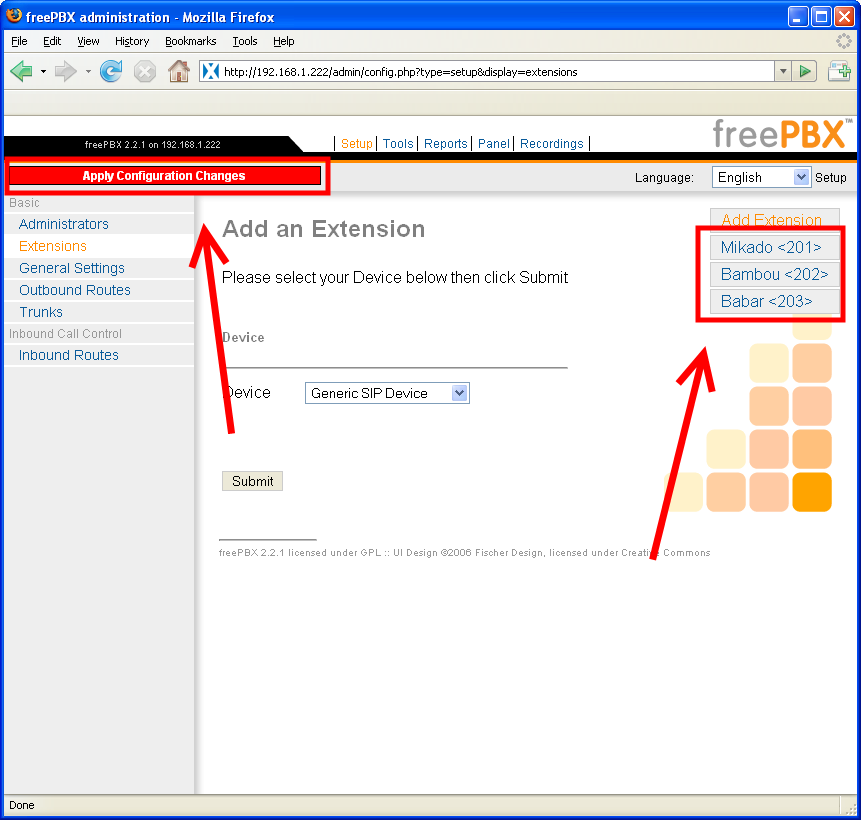

As you can see it on the right side, the three extensions have been created.

Click on the "Apply Configuration Changes" red button on the left to apply your new extension settings.
