QUAGGA - The Easy Tutorial - Case Study 4 - BGP

Quagga Case 4 - BGP
Last Change : Dec 07 2010 french flagenglish flag


Tool
Install
Ergonomy
Forum



Details What is Quagga?
Prerequisites & Installation
How to use Quagga
Routers functionnalities comparison
Case Study 1 - Static routes
Case Study 2 - OSPF simple
Case Study 3 - OSPF advanced
Case Study 4 - BGP




If you like our tutorials, don't hesitate to support us and visit our sponsors!
Si vous aimez nos tutoriaux, n'hésitez pas à nous supporter et visiter nos sponsors!






If you liked our tutorials, don't hesitate to support us and visit our sponsors!
Si vous aimez nos tutoriaux, n'hésitez pas à nous supporter et visiter nos sponsors!



1. CASE PRINCIPLE 2. PICTURE 3. CONFIGURATIONS 4. SHOW COMMANDS 5. FAILOVER
See a similar scenario with the Vyatta router.


1. CASE PRINCIPLE

Some words about BGP.

This tutorial is dedicated to the BGP (Border Gateway Protocol) dynamic routing protocol, for which the fourth and last version of BGP has been released in 1994.

BGP is mainly used by Service providers to perform the routing inside the Internet or to provide connectivity between the remote sites of a company with technologies like MPLS.

BGP is not scalable for a small to medium environment (up to 100 routers) because of its slow convergence time compared to the RIP or OSFP routing protocol. At the same time it can be very complex to configure and needs powerful (and very expensive) hardware to be run comfortably.
This is why BGP should normally only be used by service providers or companies with a very large number of routers.

To give an example, in July 2007 more than 200'000 BGP entries were found on an internet router and are growing each day. Because of this high number of routes, the variation of the routing table will require a lot of resources and, as a consequence, the hardware must be very powerful.
Cisco Systems (with its 12000 series routers) and Juniper share this lucrative market.
For private networks, it is also possible to use BGP on "smaller" routers like the Cisco 7200 or 3800 series routers. Of course, Quagga supported by a good appliance can be comfortable in these environments too.

Two major BGP strong points are:
-

-


Use of TCP. BGP communicates with the other BGP routers (called peers) through TCP which is the most reliable protocol.
The notion of Autonomous System (AS). It is a group of IP networks under common administration and common routing policies.
It is composed of a variable number of BGP routers.
We will give in the tables below some key points to compare BGP with two other well known routing protocols, OSPF and RIP, as well as some explanations about the BGP best path selection.

Browse the web or buy a good book to find more details about this complex routing protocol.

Routing protocols comparison:

  RIP OSPF BGP
Version: v2 v2 v4
RFC: 2453 2328 1771
Date: 1998 1998 1994

IGP - EGP: (1) IGP IGP EGP
Type: Distance vector Link state Path vector
Algorithm: Bellman-Ford Dijkstra Best Path Selection

Convergence: (2) Medium Fast Slow
Administrative distance: 120 110 20
OSI level / port: UDP / 520 IP / 89 TCP / 179

Configuration complexity: Easy Medium Hard to very hard
Routing granularity: Router Router Autonomous System (3)
Scalable for: < 100 routers < 100 routers > 100 routers
Resource consumption: Low Low to Medium High
(1)


(2)

(3)

IGP stands for Interior Gateway Protocols, EGP for Exterior Gateway Protocols.
EGPs are used between independent administrative entities, often called autonomous systems and IGPs are used inside them.
Convergence time: time needed for the routers to update their routing table after a change in the network topology.
When several paths are available for a specific network, BGP choose the route crossing the smallest number of autonomous systems.
BGP path selection process:

The BGP path selection process is used if there are several routes available for a network. You can see it with the "show ip bgp" command. This command must not be confounded with the "show ip route" command where only the best routes are displayed on the screen.

To get full details, you can read the Cisco webpage about the BGP path selection process.
Click on an attribute name to get an example.

  ATTRIBUTE NAME PREFERENCE VALUE TRANSMISSION DESCRIPTION
1. Weight (a) Highest Local to router Cisco & Quagga specific
2. Local Preference Highest Global within AS How to exit the AS if multiple paths
3. Path Shortest
4. Origin Code Lowest   IGP or "i" < EGP or "e" < Incomplete or "?" (b)
5. MED (Metric) Lowest Transmitted to the neighbors AS only
(a)
(b)
By default, a directly connected route takes a weight of 32768.
An origin code of incomplete is due to route redistribution into BGP.
Case study principle

Here are the functionalities we will test in our BGP scenario:

-



-








-



-



-


EBGP (external BGP): BGP between the autonomous systems.
EBGP is running between Cisco 3750 L3 and Cisco 2651 A, Cisco 2651 A and Quagga B, Quagga B and Cisco 2651 C, Cisco 2651 and Quagga A.

IBGP (Internal BGP): BGP inside an AS.
IBGP is running between Cisco 3750 L3 and Quagga A.

BGP to OSPF redistribution:
On Cisco 3750 L3: BGP routes are injected into OSPF with a metric of 1000 and tagged as OE1.
On Quagga A: BGP routes are injected into OSPF with a metric of 2000 and tagged as OE2 (default).

OSPF to BGP redistribution:
On Cisco 3750 L3 and Quagga A, the OSPF networks are injected into BGP with the default values.

Local Preference: Cisco 3750 L3 is the preferred router to exit AS 65001
Customized local preferences are applied through route maps to the BGP incoming routes on Cisco 3750 L3 (333) and Quagga A (222).

MED. Quagga B will prefer the path via AS 65003 rather than AS 65004 to reach AS 65001.
Customized MEDs are applied through route maps to the outgoing BGP routes towards AS 65005 on Cisco 2651 B (55) and Cisco 2651 C (99).

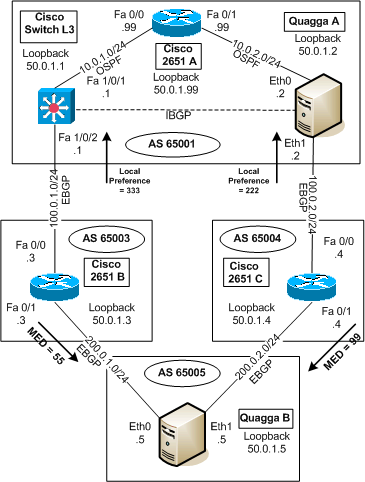

2. PICTURE

vyatta cisco case study BGP Functionalities tested:

(click on the web links to have more details about a protocol)

Interface settings
OSPF - backbone area
BGP
Redistr. - BGP to OSPF
Redistr. - OSPF to BGP
Telnet access































Top of the page




3. CONFIGURATIONS

You must set your Linux system correctly to launch Quagga successfully.
See the Quagga tutorial for help about this.
LINUX CONFIGURATIONS

Check that the zebra, ospfd and bgpd daemons are activated on Quagga A:

#vim /etc/quagga/daemons
zebra=yes
bgpd=yes
ospfd=yes
ospf6d=no
ripd=no
ripngd=no
isisd=no


Check that the zebra and bgpd daemons are activated on Quagga B:

#vim /etc/quagga/daemons
zebra=yes
bgpd=yes
ospfd=no
ospf6d=no
ripd=no
ripngd=no
isisd=no


If you changed your daemons files, restart the quagga service:

#vim /etc/init.d/quagga restart
Set the Quagga A hostname in the /etc/quagga/vtysh.conf file:

#vim /etc/quagga/vtysh.conf
!
! Sample
!
! service integrated-vtysh-config
hostname Quagga_A
username root nopassword
!


Set the Quagga B hostname in the /etc/quagga/vtysh.conf file:

#vim /etc/quagga/vtysh.conf
!
! Sample
!
! service integrated-vtysh-config
hostname Quagga_B
username root nopassword
!


Don't forget to activate the ip forwarding on the Quagga A and Quagga B routers!

ROUTERS CONFIGURATIONS

ROUTER 2651 A IOS: 12.2-23a
See the entire configuration




interface FastEthernet0/1
  ip address 10.0.2.99 255.255.255.0
  no shutdown
interface FastEthernet0/0
  ip address 10.0.1.99 255.255.255.0
  no shutdown
interface Loopback 1
  ip address 50.0.1.99 255.255.255.255
Cisco_2651_A
router ospf 1
  network 10.0.1.0 0.0.0.255 area 0
  network 10.0.2.0 0.0.0.255 area 0
  network 50.0.1.99 0.0.0.0 area 0
line vty 0 4
  no login
enable secret password

SWITCH L3 3750
IOS: 12.2-25.SEE2
See the entire configuration


QUAGGA A
0.99.6
See the entire configuration

interface vlan 1
  ip address 10.0.1.1 255.255.255.0
  no shutdown
interface FastEthernet1/0/1
  switchport access vlan 1
interface eth0
  ip address 10.0.2.2/24
  link-detect


interface vlan 2
  ip address 100.0.1.1 255.255.255.0
  no shutdown
interface FastEthernet1/0/2
  switchport access vlan 2
interface eth1
  ip address 100.0.2.2/24
  link-detect


interface Loopback 1
  ip address 50.0.1.1 255.255.255.255

interface lo
  ip address 50.0.1.2/32
  link-detect
hostname Cisco_3750_L3
router ospf 1
  redistribute connected metric 1000
  metric-type 1 subnets
  redistribute bgp 65001 metric 1000
  metric-type 1 subnets
  network 10.0.1.0 0.0.0.255 area 0
router ospf
  redistribute connected metric 2000

  redistribute bgp metric 2000

  network 10.0.2.0/24 area 0.0.0.0

router bgp 65001
  no synchronization
  bgp router-id 50.0.1.1
  network 50.0.1.1 mask 255.255.255.255
  redistribute connected
  redistribute ospf 1
  neighbor 10.0.2.2 remote-as 65001
  neighbor 100.0.1.3 remote-as 65003
  neighbor 100.0.1.3 route-map r2 in
  no auto-summary
bgp config-type cisco
router bgp 65001
  no synchronization
  bgp router-id 50.0.1.2
  network 50.0.1.2 mask 255.255.255.255
  redistribute connected
  redistribute ospf
  neighbor 10.0.1.1 remote-as 65001
  neighbor 100.0.2.4 remote-as 65004
  neighbor 100.0.2.4 route-map r2 in
  no auto-summary
route-map r2 permit 10
  set local-preference 333
route-map r2 permit 10
  set local-preference 222
line vty 0 4
  no login
line vty
  no login
enable secret password

enable password password

ip routing
ip multicast-routing distributed

ROUTER 2651 B
IOS: 12.2-23a
See the entire configuration


QUAGGA B
0.99.6
See the entire configuration

interface FastEthernet0/0
  ip address 100.0.1.3 255.255.255.0
  no shutdown
interface eth0
  ip address 200.0.1.5/24
  link-detect
interface FastEthernet0/1
  ip address 200.0.1.3 255.255.255.0
  no shutdown
interface eth1
  ip address 200.0.2.5/24
  link-detect
interface Loopback 1
  ip address 50.0.1.3 255.255.255.255

interface lo
  ip address 50.0.1.5/32
  link-detect
hostname Cisco_2651_B
router bgp 65003
  bgp router-id 50.0.1.3
  network 50.0.1.3 mask 255.255.255.255
  redistribute connected
  neighbor 100.0.1.1 remote-as 65001
  neighbor 200.0.1.5 remote-as 65005
  neighbor 200.0.1.5 route-map r3 out
  no auto-summary
router bgp 65005
  bgp router-id 50.0.1.5
  network 50.0.1.5 mask 255.255.255.255
  redistribute connected
  neighbor 200.0.1.3 remote-as 65003
  neighbor 200.0.2.4 remote-as 65004

  no auto-summary
route-map r3 permit 10
  set metric 55
line vty 0 4
  no login
line vty
  no login
enable secret password enable password password

ROUTER 2651 C IOS: 12.2-23a
See the entire configuration




interface FastEthernet0/0
  ip address 100.0.2.4 255.255.255.0
  no shutdown
interface FastEthernet0/1
  ip address 200.0.2.4 255.255.255.0
  no shutdown
interface Loopback 1
  ip address 50.0.1.4 255.255.255.255
router bgp 65004
  bgp router-id 50.0.1.4
  network 50.0.1.4 mask 255.255.255.255
  redistribute connected
  neighbor 100.0.2.2 remote-as 65001
  neighbor 200.0.2.5 remote-as 65005
  neighbor 200.0.2.5 route-map r99 out
  no auto-summary
hostname Cisco_2651_C
route-map r99 permit 10
  set metric 99
line vty 0 4
  no login
enable secret password
Top of the page



4. SHOW COMMANDS

CISCO 2651 A CISCO 3750 L3 QUAGGA A CISCO 2651 B QUAGGA B CISCO 2651 C
CISCO 2651 A

Cisco_2651_A#show ip int brief

Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 10.0.1.99 YES NVRAM up up
FastEthernet0/1 10.0.2.99 YES NVRAM up up
Loopback1 50.0.1.99 YES NVRAM up up
Cisco_2651_A#show ip route

Codes:   C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
      D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
      i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
      ia - IS-IS inter area, * - candidate default, U - per-user static route
      o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

    50.0.0.0/32 is subnetted, 6 subnets
O E1   50.0.1.3 [110/1001] via 10.0.1.1, 00:37:09, FastEthernet0/0
O E2   50.0.1.2 [110/2000] via 10.0.2.2, 00:37:15, FastEthernet0/1
O E1   50.0.1.1 [110/1001] via 10.0.1.1, 00:37:15, FastEthernet0/0
O E1   50.0.1.5 [110/1001] via 10.0.1.1, 00:36:22, FastEthernet0/0
O E1   50.0.1.4 [110/1001] via 10.0.1.1, 00:35:56, FastEthernet0/0
C     50.0.1.99 is directly connected, Loopback1
    100.0.0.0/24 is subnetted, 2 subnets
O E1   100.0.1.0 [110/1001] via 10.0.1.1, 00:37:15, FastEthernet0/0
O E2   100.0.2.0 [110/2000] via 10.0.2.2, 00:12:48, FastEthernet0/1
O E1 200.0.1.0/24 [110/1001] via 10.0.1.1, 00:37:09, FastEthernet0/0
O E1 200.0.2.0/24 [110/1001] via 10.0.1.1, 00:36:22, FastEthernet0/0
    10.0.0.0/24 is subnetted, 2 subnets
C     10.0.2.0 is directly connected, FastEthernet0/1
C     10.0.1.0 is directly connected, FastEthernet0/0
Cisco_2651_A#show ip ospf database

  OSPF Router with ID (50.0.1.99) (Process ID 1)

    Router Link States (Area 0)

Link ID   ADV Router Age Seq# Checksum Link count
50.0.1.1   50.0.1.1 357 0x80000004 0x003417 1
50.0.1.2   50.0.1.2 555 0x80000004 0x00CC90 1
50.0.1.99   50.0.1.99 404 0x80000005 0x00236B 3

    Net Link States (Area 0)

Link ID   ADV Router Age Seq# Checksum
10.0.1.99   50.0.1.99 404 0x80000002 0x009CCC
10.0.2.99   50.0.1.99 404 0x80000002 0x009FC7

    Type-5 AS External Link States

Link ID   ADV Router Age Seq# Checksum Tag
50.0.1.1   50.0.1.1 357 0x80000002 0x005B84 0
50.0.1.2   50.0.1.2 502 0x80000003 0x00C3CA 0
50.0.1.3   50.0.1.1 357 0x80000002 0x00BB38 65003
50.0.1.4   50.0.1.1 357 0x80000002 0x00B141 65003
50.0.1.5   50.0.1.1 357 0x80000002 0x00A74A 65003
100.0.1.0   50.0.1.1 357 0x80000002 0x00D8D5 0
100.0.2.0   50.0.1.2 834 0x80000001 0x00441B 0
200.0.1.0   50.0.1.1 357 0x80000002 0x00342C 65003
200.0.2.0   50.0.1.1 357 0x80000002 0x002936 65003
CISCO 3750 L3

Cisco_3750_L3#show ip int brief

Interface IP-Address OK? Method Status Protocol
Vlan1 10.0.1.1 YES NVRAM up up
Vlan2 100.0.1.1 YES NVRAM up up
FastEthernet1/0/1 unassigned YES NVRAM up up
FastEthernet1/0/2 unassigned YES NVRAM up up
... ... ... ... ... ...
Loopback1 50.0.1.1 YES NVRAM up up
Cisco_3750_L3#show ip route

Codes:   C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
      D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
      i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
      ia - IS-IS inter area, * - candidate default, U - per-user static route
      o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

    50.0.0.0/32 is subnetted, 6 subnets
B     50.0.1.3 [20/0] via 100.0.1.3, 00:41:15
O E2   50.0.1.2 [110/2000] via 10.0.1.99, 00:41:20, Vlan1
C     50.0.1.1 is directly connected, Loopback1
B     50.0.1.5 [20/0] via 100.0.1.3, 00:40:27
B     50.0.1.4 [20/0] via 100.0.1.3, 00:40:01
O     50.0.1.99 [110/2] via 10.0.1.99, 00:41:20, Vlan1
    100.0.0.0/24 is subnetted, 2 subnets
C     100.0.1.0 is directly connected, Vlan2
O E2   100.0.2.0 [110/2000] via 10.0.1.99, 00:16:53, Vlan1
B   200.0.1.0/24 [20/0] via 100.0.1.3, 00:41:15
B   200.0.2.0/24 [20/0] via 100.0.1.3, 00:40:27
    10.0.0.0/24 is subnetted, 3 subnets
O     10.0.2.0 [110/2] via 10.0.1.99, 00:41:20, Vlan1
C     10.0.1.0 is directly connected, Vlan1
Cisco_3750_L3#show ip ospf database

  OSPF Router with ID (50.0.1.1) (Process ID 1)

    Router Link States (Area 0)

Link ID   ADV Router Age Seq# Checksum Link count
50.0.1.1   50.0.1.1 631 0x80000004 0x003417 1
50.0.1.2   50.0.1.2 832 0x80000004 0x00CC90 1
50.0.1.99   50.0.1.99 680 0x80000005 0x00236B 3

    Net Link States (Area 0)

Link ID   ADV Router Age Seq# Checksum
10.0.1.99   50.0.1.99 680 0x80000002 0x009CCC
10.0.2.99   50.0.1.99 680 0x80000002 0x009FC7

    Type-5 AS External Link States

Link ID   ADV Router Age Seq# Checksum Tag
50.0.1.1   50.0.1.1 631 0x80000002 0x005B84 0
50.0.1.2   50.0.1.2 779 0x80000003 0x00C3CA 0
50.0.1.3   50.0.1.1 631 0x80000002 0x00BB38 65003
50.0.1.4   50.0.1.1 631 0x80000002 0x00B141 65003
50.0.1.5   50.0.1.1 631 0x80000002 0x00A74A 65003
100.0.1.0   50.0.1.1 631 0x80000002 0x00D8D5 0
100.0.2.0   50.0.1.2 1111 0x80000001 0x00441B 0
200.0.1.0   50.0.1.1 632 0x80000002 0x00342C 65003
200.0.2.0   50.0.1.1 632 0x80000002 0x002936 65003
Cisco_3750_L3#show ip bgp summary

BGP router identifier 50.0.1.1, local AS number 65001
BGP table version is 16, main routing table version 16
13 network entries using 1469 bytes of memory
24 path entries using 1248 bytes of memory
18/10 BGP path/bestpath attribute entries using 1944 bytes of memory
3 BGP AS-PATH entries using 72 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 4733 total bytes of memory
BGP activity 13/0 prefixes, 24/0 paths, scan interval 60 secs

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
10.0.2.2 4 65001 58 64 16 0 0 00:44:16 13
100.0.1.3 4 65003 54 53 16 0 0 00:45:14 6
Cisco_3750_L3#show ip bgp

BGP table version is 16, local router ID is 50.0.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
      r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network   Next Hop Metric LocPrf Weight Path
* i 10.0.1.0/24   10.0.2.99 11 100 0 ?
*>       0.0.0.0 0   32768 ?
* i 10.0.2.0/24   10.0.2.2 1 100 0 ?
*>       10.0.1.99 2   32768 ?
* i 50.0.1.1/32   10.0.2.99 1011 100 0 ?
*>       0.0.0.0 0   32768 i
r> i 50.0.1.2/32   10.0.2.2 0 100 0 i
* i i50.0.1.3/32   10.0.2.99 1011 100 0 ?
*>       100.0.1.3 0 333 0 65003 i
* i 50.0.1.4/32   10.0.2.99 1011 100 0 ?
*>       100.0.1.3   333 0 65003 65005 65004 i
* i 50.0.1.5/32   10.0.2.99 1011 100 0 ?
*>       100.0.1.3   333 0 65003 65005 i
* i 50.0.1.99/32   10.0.2.99 11 100 0 ?
*>       10.0.1.99 2   32768 ?
* i 100.0.1.0/24   10.0.2.99 1011 100 0 ?
*       100.0.1.3 0 333 0 65003 ?
*>       0.0.0.0 0   32768 ?
r> i 100.0.2.0/24   10.0.2.2 1 100 0 ?
* i 200.0.1.0   10.0.2.99 1011 100 0 ?
*>       100.0.1.3 0 333 0 65003 ?
* i 200.0.2.0   10.0.2.99 1011 100 0 ?
*>       100.0.1.3   333 0 65003 65005 ?
Top of the page       Show Commands Menu

QUAGGA A

Quagga_A#show interface description

Interface Status Protocol Description
eth0 up up
eth1 up up
lo up up
Quagga_A#show ip route

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
    I - ISIS, B - BGP, > - selected route, * - FIB route

O>*   10.0.1.0/24 [110/11] via 10.0.2.99, eth0, 01:11:01
O   10.0.2.0/24 [110/10] is directly connected, eth0, 01:11:48
C>*   10.0.2.0/24 is directly connected, eth0
O>*   50.0.1.1/32 [110/1011] via 10.0.2.99, eth0, 01:10:16
C>*   50.0.1.2/32 is directly connected, lo
O>*   50.0.1.3/32 [110/1011] via 10.0.2.99, eth0, 01:10:02
O>*   50.0.1.4/32 [110/1011] via 10.0.2.99, eth0, 01:08:48
O>*   50.0.1.5/32 [110/1011] via 10.0.2.99, eth0, 01:09:14
O>*   50.0.1.99/32 [110/11] via 10.0.2.99, eth0, 01:11:01
O>*   100.0.1.0/24 [110/1011] via 10.0.2.99, eth0, 01:10:16
C>*   100.0.2.0/24 is directly connected, eth1
C>*   127.0.0.0/8 is directly connected, lo
O>*   200.0.1.0/24 [110/1011] via 10.0.2.99, eth0, 01:10:02
O>*   200.0.2.0/24 [110/1011] via 10.0.2.99, eth0, 01:09:14
Quagga_A (Linux level)#route -n

Destination Gateway Genmask Flags Metric Ref Use Iface
50.0.1.1 10.0.2.99 255.255.255.255 UGH 1011 0 0 eth0
50.0.1.99 10.0.2.99 255.255.255.255 UGH 11 0 0 eth0
50.0.1.3 10.0.2.99 255.255.255.255 UGH 1011 0 0 eth0
50.0.1.5 10.0.2.99 255.255.255.255 UGH 1011 0 0 eth0
50.0.1.4 10.0.2.99 255.255.255.255 UGH 1011 0 0 eth0
10.0.1.0 10.0.2.99 255.255.255.0 UG 11 0 0 eth0
10.0.2.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0
100.0.2.0 0.0.0.0 255.255.255.0 U 0 0 0 eth1
200.0.1.0 10.0.2.99 255.255.255.0 UG 1011 0 0 eth0
200.0.2.0 10.0.2.99 255.255.255.0 UG 1011 0 0 eth0
100.0.1.0 10.0.2.99 255.255.255.0 UG 1011 0 0 eth0
Quagga_A#show ip ospf database

  OSPF Router with ID (50.0.1.2)

    Router Link States (Area 0.0.0.0)

Link ID   ADV Router Age Seq# CkSum Link count
50.0.1.1   50.0.1.1 292 0x80000005 0x3218 1
50.0.1.2   50.0.1.2 693 0x80000005 0xca91 1
50.0.1.99   50.0.1.99 311 0x80000006 0x216c 3

    Net Link States (Area 0.0.0.0)

    ADV Router     CkSum
10.0.1.99   50.0.1.99   0x80000003 0x9acd
10.0.2.99   50.0.1.99   0x80000003 0x9dc8

    AS External Link States

Link ID   ADV Router Age Seq# CkSum Route
50.0.1.1   50.0.1.1 292 0x80000003 0x5985 E1 50.0.1.1/32 [0x0]
50.0.1.2   50.0.1.2 611 0x80000004 0xc1cb 50.0.1.2/32 [0x0]
50.0.1.3   50.0.1.1 292 0x80000003 0xb939 50.0.1.3/32 [0xfdeb]
50.0.1.4   50.0.1.1 292 0x80000003 0xaf42 50.0.1.4/32 [0xfdeb]
50.0.1.5   50.0.1.1 292 0x80000003 0xa54b 50.0.1.5/32 [0xfdeb]
100.0.1.0   50.0.1.1 292 0x80000003 0xd6d6 100.0.1.0/24 [0x0]
100.0.2.0   50.0.1.2 1431 0x80000002 0x421c 100.0.2.0/24 [0x0]
200.0.1.0   50.0.1.1 292 0x80000003 0x322d 200.0.1.0/24 [0xfdeb]
200.0.2.0   50.0.1.1 292 0x80000003 0x2737 200.0.2.0/24 [0xfdeb]
Quagga_A#show ip bgp summary

BGP router identifier 50.0.1.2, local AS number 65001
RIB entries 25, using 1600 bytes of memory
Peers 2, using 5024 bytes of memory

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
10.0.1.1 4 65001 89 85 0 0 0 01:11:27 10
100.0.2.4 4 65004 57 53 0 0 0 00:46:37 5

Total number of neighbors 2
Quagga_A#show ip bgp

BGP table version is 0, local router ID is 50.0.1.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
      r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network   Next Hop Metric LocPrf Weight Path
* i 10.0.1.0/24   10.0.1.1 0 100 0 ?
*>       10.0.2.99 11   32768 ?
* i 10.0.2.0/24   10.0.1.99 2 100 0 ?
*>       0.0.0.0 1   32768 ?
* i 50.0.1.1/32   10.0.1.1 0 100 0 i
*>       10.0.2.99 1011   32768 ?
*   50.0.1.2/32   0.0.0.0 1   32768 ?
*>       0.0.0.0 0   32768 i
*>   50.0.1.3/32   10.0.2.99 1011   32768 ?
* i     100.0.1.3 0 333 0 65003 i
*   50.0.1.4/32   100.0.2.4 0 222 0 65004 i
*>       10.0.2.99 1011   32768 ?
* i     100.0.1.3 0 333 0 65003 65005 65004 i
*   50.0.1.5/32   100.0.2.4   222 0 65004 65005 i
* i     100.0.1.3 0 333 0 65003 65005 i
*>       10.0.2.99 1011   32768 ?
* i 50.0.1.99/32   10.0.1.99 2 100 0 ?
*>       10.0.2.99 11   32768 ?
* i 100.0.1.0/24   10.0.1.1 0 100 0 ?
*>       10.0.2.99 1011   32768 ?
*   100.0.2.0/24   100.0.2.4 0 222 0 65004 ?
*>       0.0.0.0 1   32768 ?
*   200.0.1.0   100.0.2.4   222 0 65004 65005 ?
*>       10.0.2.99 1011   32768 ?
* i     100.0.1.3 0 333 0 65003 ?
*   200.0.2.0   100.0.2.4 0 222 0 65004 ?
*>       10.0.2.99 1011   32768 ?
* i     100.0.1.3 0 333 0 65003 65005 ?
Let's look at the weight effect on the 50.1.0.3 network (see above):
There are two routes for 50.0.1.3; which one will be chosen?
The weights are different so the elected route (indicated with the ">" character) will have the highest weight (32768).

Let's look at the local preference effect on the 50.1.0.5 network (see above):
There are two routes for 50.0.1.5; which one will be chosen?
The weights are equals -> the local preferences are different so the route (indicated with the ">" character) with the highest local preference (333) will be chosen.

See details about the BGP path selection process.

Quagga_A#show route-map r2

OSPF:
route-map r2, permit, sequence 10
  Match clauses:
  Set clauses:
  Call clause:
  Action:
    Exit routemap
BGP:
route-map r2, permit, sequence 10
  Match clauses:
  Set clauses:
    local-preference 222
  Call clause:
  Action:
    Exit routemap
Top of the page       Show Commands Menu

CISCO 2651 B

Cisco_2651_B#show ip interface brief

Interface IP-Address OK? Method Status Protocol
FastEthernet0/1 100.0.1.3 YES NVRAM up up
FastEthernet0/1 200.0.1.3 YES NVRAM up up
Loopback1 50.0.1.3 YES NVRAM up up
Cisco_2651_B#show ip route

Codes:   C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
      D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
      i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
      ia - IS-IS inter area, * - candidate default, U - per-user static route
      o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

    50.0.0.0/32 is subnetted, 6 subnets
C     50.0.1.3 is directly connected, Loopback1
B     50.0.1.2 [20/0] via 100.0.1.1, 00:46:33
B     50.0.1.1 [20/0] via 100.0.1.1, 00:47:02
B     50.0.1.5 [20/0] via 200.0.1.5, 00:46:30
B     50.0.1.4 [20/0] via 200.0.1.5, 00:46:00
B     50.0.1.99 [20/2] via 100.0.1.1, 00:47:02
    100.0.0.0/24 is subnetted, 2 subnets
C     100.0.1.0 is directly connected, FastEthernet0/0
B     100.0.2.0 [20/0] via 100.0.1.1, 00:22:34
C   200.0.1.0/24 is directly connected, FastEthernet0/1
B   200.0.2.0/24 [20/1] via 200.0.1.5, 00:46:30
    10.0.0.0/24 is subnetted, 3 subnets
B     10.0.2.0 [20/2] via 100.0.1.1, 00:47:02
B     10.0.1.0 [20/0] via 100.0.1.1, 00:47:03
Cisco_2651_B#show ip bgp summary

BGP router identifier 50.0.1.3, local AS number 65003
BGP table version is 14, main routing table version 14
13 network entries using 1261 bytes of memory
16 path entries using 576 bytes of memory
11 BGP path attribute entries using 660 bytes of memory
3 BGP AS-PATH entries using 72 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 2569 total bytes of memory
BGP activity 13/0 prefixes, 16/0 paths, scan interval 60 secs

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
100.0.1.1 4 65001 56 57 14 0 0 00:48:56 8
200.0.1.5 4 65005 57 58 14 0 0 00:47:26 5
Cisco_2651_B#show ip bgp

BGP table version is 16, local router ID is 50.0.1.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
      r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network   Next Hop Metric LocPrf Weight Path
*>   10.0.1.0/24   100.0.1.1 0   0 65001 ?
*       200.0.1.5     0 65005 65004 65001 ?
*>   10.0.2.0/24   100.0.1.1 2   0 65001 ?
*       200.0.1.5     0 65005 65004 65001 ?
*>   50.0.1.1/32   100.0.1.1 0   0 65001 i
*>   50.0.1.2/32   100.0.1.1     0 65001 i
*       200.0.1.5     0 65005 65004 65001 i
*>   50.0.1.3/32   0.0.0.0 0   32768 i
*>   50.0.1.4/32   100.0.1.1     0 65001 65004 i
*       200.0.1.5     0 65005 65004 i
*>   50.0.1.5/32   200.0.1.5 0   0 65005 i
*>   50.0.1.99/32   100.0.1.1 2   0 65001 ?
*       200.0.1.5     0 65005 65004 65001 ?
*>   100.0.1.0/24   0.0.0.0 0   32768 ?
*       100.0.1.1 0   0 65001 ?
*>   100.0.2.0/24   100.0.1.1     0 65001 ?
*       200.0.1.5     0 65005 65004 ?
*>   200.0.1.0   0.0.0.0 0   32768 ?
*       200.0.1.5 1   0 65005 ?
*>   200.0.2.0   200.0.1.5 1   0 65005 ?
Let's look at the AS path effect on the 10.0.2.0 network (in red above):
There are two routes for 10.0.2.0; which one will be chosen?

The weights are equals (0) -> the local preferences are not set -> The path lengths are different. This means that the elected route (indicated with the ">" character) will have the shortest path (1).

See details about the BGP path selection process.

Top of the page       Show Commands Menu


QUAGGA B

Quagga_B#show interface description

Interface Status Protocol Description
eth0 up up
eth1 up up
lo up up
Quagga_B#show ip route

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
    I - ISIS, B - BGP, > - selected route, * - FIB route

B>*   10.0.1.0/24 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   10.0.2.0/24 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   50.0.1.1/32 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   50.0.1.2/32 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   50.0.1.3/32 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   50.0.1.4/32 [20/99] via 200.0.2.4, eth1, 01:14:45
C>*   50.0.1.5/32 is directly connected, lo
B>*   50.0.1.99/32 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   100.0.1.0/24 [20/55] via 200.0.1.3, eth0, 01:14:47
B>*   100.0.2.0/24 [20/99] via 200.0.2.4, eth1, 00:50:45
C>*   127.0.0.0/8 is directly connected, lo
C>*   200.0.1.0/24 is directly connected, eth0
C>*   200.0.2.0/24 is directly connected, eth1
Quagga_B#show ip bgp summary

BGP router identifier 50.0.1.5, local AS number 65005
RIB entries 25, using 1600 bytes of memory
Peers 2, using 5024 bytes of memory

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
200.0.1.3 4 65003 85 85 0 0 0 01:16:00 10
200.0.2.4 4 65004 84 90 0 0 0 01:15:59 11

Total number of neighbors 2
Quagga_B#show ip bgp

BGP table version is 0, local router ID is 50.0.1.5
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
      r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network   Next Hop Metric LocPrf Weight Path
*   10.0.1.0/24   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 65001 ?
*   10.0.2.0/24   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 65001 ?
*   50.0.1.1/32   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 65001 i
*   50.0.1.2/32   200.0.2.4 99   0 65004 65001 i
*>       200.0.1.3 55   0 65003 65001 i
*   50.0.1.3/32   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 i
*>   50.0.1.4/32   200.0.2.4 99   0 65004 i
*   50.0.1.5/32   0.0.0.0 1   32768 ?
*>       0.0.0.0 0   32768 i
*   50.0.1.99/32   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 65001 ?
*   100.0.1.0/24   200.0.2.4 99   0 65004 65001 ?
*>       200.0.1.3 55   0 65003 ?
*>   100.0.2.0/24   200.0.2.4 99   0 65004 ?
*       200.0.1.3 55   0 65003 65001 ?
*   200.0.1.0   200.0.1.3 55   0 65003 ?
*>       0.0.0.0 1   32768 ?
*   200.0.2.0   200.0.2.4 99   0 65004 ?
*>       0.0.0.0 1   32768 ?
Let's look at the MED effect on the 10.0.1.0 network (in red above):
There are two routes for 10.0.1.0; which one will be chosen?

The weights are equal (0) -> the local preferences are not set -> The path lengthsare equal (2) -> The origine codes are equal ("?" character) -> the MED are differrent. It means that the elected route (indicated with the ">" character) will have the lowest MED (55).

See details about the BGP path selection process.

Top of the page       Show Commands Menu

CISCO 2651 C

Cisco_2651_C#show ip interface brief

Interface IP-Address OK? Method Status Protocol
FastEthernet0/1 100.0.2.4 YES NVRAM up up
FastEthernet0/1 200.0.2.4 YES NVRAM up up
Loopback1 50.0.1.4 YES NVRAM up up
Cisco_2651_C#show ip route

Codes:   C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
      D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
      i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
      ia - IS-IS inter area, * - candidate default, U - per-user static route
      o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

    50.0.0.0/32 is subnetted, 6 subnets
B     50.0.1.3 [20/1011] via 100.0.2.2, 00:41:28
B     50.0.1.2 [20/0] via 100.0.2.2, 00:41:28
B     50.0.1.1 [20/1011] via 100.0.2.2, 00:41:28
B     50.0.1.5 [20/0] via 200.0.2.5, 01:05:46
C     50.0.1.4 is directly connected, Loopback1
B     50.0.1.99 [20/11] via 100.0.2.2, 00:41:29
    100.0.0.0/24 is subnetted, 2 subnets
B     100.0.1.0 [20/1011] via 100.0.2.2, 00:41:28
C     100.0.2.0 is directly connected, Ethernet0/0
B   200.0.1.0/24 [20/1] via 200.0.2.5, 01:05:46
C   200.0.2.0/24 is directly connected, Ethernet0/1
    10.0.0.0/24 is subnetted, 3 subnets
B     10.0.2.0 [20/1] via 100.0.2.2, 00:41:28
B     10.0.1.0 [20/11] via 100.0.2.2, 00:41:30
Cisco_2651_C#show ip bgp summary

BGP router identifier 50.0.1.4, local AS number 65004
BGP table version is 24, main routing table version 24
13 network entries and 26 paths using 2197 bytes of memory
12 BGP path attribute entries using 624 bytes of memory
4 BGP AS-PATH entries using 96 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP activity 16/26 prefixes, 31/2 paths, scan interval 15 secs

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
100.0.2.2 4 65001 49 54 24 0 0 00:42:26 12
200.0.2.5 4 65005 81 76 24 0 0 01:06:44 11
Cisco_2651_C#show ip bgp

BGP table version is 0, local router ID is 50.0.1.5
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
      r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network   Next Hop Metric LocPrf Weight Path
*>   10.0.1.0/24   100.0.2.2 11   0 65001 ?
*       200.0.2.5     0 65005 65003 65001 ?
*>   10.0.2.0/24   100.0.2.2 0   0 65001 ?
*       200.0.2.5     0 65005 65003 65001 ?
*>   50.0.1.1/32   100.0.2.2 1011   0 65001 ?
*       200.0.2.5     0 65005 65003 65001 i
*>   50.0.1.2/32   100.0.2.2 0   0 65001 i
*       200.0.2.5     0 65005 65003 65001 i
*>   50.0.1.3/32   100.0.2.2 1011   0 65001 ?
*       200.0.2.5     0 65005 65003 i
*>   50.0.1.4/32   0.0.0.0 0   32768 i
*   50.0.1.5/32   100.0.2.2 1011   0 65001 ?
*>       200.0.2.5 0   0 65005 i
*>   50.0.1.99/32   100.0.2.2 11   0 65001 ?
*       200.0.2.5     0 65005 65003 65001 ?
*>   100.0.1.0/24   100.0.2.2 1011   0 65001 ?
*       200.0.2.5     0 65005 65003 ?
*   100.0.2.0/24   100.0.2.2 1   0 65001 ?
*>       200.0.2.5 0   32768 ?
*   200.0.1.0   100.0.2.2 1011   0 65001 ?
*>       200.0.2.5 1   0 65005 ?
*   200.0.2.0   100.0.2.2 1011   0 65001 ?
*       200.0.2.5 1   0 65005 ?
*>       0.0.0.0 0   32768 ?
Let's look at the origin code effect on the 50.0.1.5 network (in red above):
There are two routes for 50.0.1.5; which one will be chosen?

The weights are equal (0) -> the local preferences are not set -> The path lengths are equal (1) -> The origin codes are different. It means that the elected route (indicated with the ">" character) will have the lowest origin code (i).

See details about the
BGP path selection process.

Cisco_2651_C#show route-map

route-map r99, permit, sequence 10
  Match clauses:
  Set clauses:
    metric 99
  Policy routing matches: 0 packets, 0 bytes
Top of the page       Show Commands Menu



5. FAILOVER SCENARIO

The goal is to power off Switch 3750 L3 and see the routing tables changes on Cisco 2651 A and Quagga A.
Cisco 2651 A should always be able to reach Quagga B but via Quagga A instead of Switch 3750 L3.


Paths comparison from Cisco 2651 A to Quagga B:
(recursive ping from Cisco 2651 A to Quagga B)

10.0.1.99
100.0.1.1
200.0.1.3
50.0.1.5
50.0.1.5
100.0.1.3
10.0.1.1
10.0.1.99
10.0.2.99
100.0.2.2
200.0.2.4
50.0.1.5
50.0.1.5
100.0.2.4
10.0.2.2
10.0.2.99
Cisco 2651 A - Best routes comparison: ("show ip route")

  50.0.0.0/32 is subnetted, 6 subnets
O E1   50.0.1.1 [110/1001] via 10.0.1.1, FastEth0/0
O E2   50.0.1.2 [110/2000] via 10.0.2.2, FastEth0/1
O E1   50.0.1.3 [110/1001] via 10.0.1.1, FastEth0/0
O E1   50.0.1.5 [110/1001] via 10.0.1.1, FastEth0/0
O E1   50.0.1.4 [110/1001] via 10.0.1.1, FastEth0/0
C   50.0.1.99 is directly connected, Loopback1
  100.0.0.0/24 is subnetted, 2 subnets
O E1   100.0.1.0 [110/1001] via 10.0.1.1, FastEth0/0
O E2   100.0.2.0 [110/2000] via 10.0.2.2, FastEth0/1
O E1 200.0.1.0/24 [110/2000] via 10.0.2.2, FastEth0/1
O E1 200.0.2.0/24 [110/2000] via 10.0.2.2, FastEth0/1
  10.0.0.0/24 is subnetted, 2subnets
C   10.0.1.0 is directly connected, FastEth0/0
C   10.0.2.0 is directly connected, FastEth0/1
  50.0.0.0/32 is subnetted, 5 subnets
   ------------------------
O E2   50.0.1.2 [110/2000] via 10.0.2.2, FastEth0/1
O E2   50.0.1.3 [110/2000] via 10.0.2.2, FastEth0/1
O E2   50.0.1.4 [110/2000] via 10.0.2.2, FastEth0/1
O E2   50.0.1.5 [110/2000] via 10.0.2.2, FastEth0/1
C   50.0.1.99 is directly connected, Loopback1
  100.0.0.0/24 is subnetted, 2 subnets
O E2   100.0.1.0 [110/2000] via 10.0.2.2, FastEth0/1
O E2   100.0.2.0 [110/2000] via 10.0.2.2, FastEth0/1
O E2 200.0.1.0/24 [110/2000] via 10.0.2.2, FastEth0/1
O E2 200.0.2.0/24 [110/2000] via 10.0.2.2, FastEth0/1
  10.0.0.0/24 is subnetted, 1 subnets
   ------------------------
C   10.0.2.0 is directly connected, FastEth0/1
Quagga A - Best routes comparison: ("show ip route")

C>* 10.0.2.0/24 is directly connected, eth0
C>* 100.0.2.0/24 is directly connected, eth1
C>* 50.0.1.2/32 is directly connected, lo
O 10.0.2.0/24 [110/10] is directly connected, eth0
O>* 10.0.1.0/24 [110/11] via 10.0.2.99, eth0
O>* 50.0.1.1/32 [110/1011] via 10.0.2.99, eth0
O>* 50.0.1.3/32 [110/1011] via 10.0.2.99, eth0
O>* 50.0.1.4/32 [110/1011] via 10.0.2.99, eth0
O>* 50.0.1.5/32 [110/1011] via 10.0.2.99, eth0
O>* 50.0.1.99/32 [110/11] via 10.0.2.99, eth0
O>* 100.0.1.0/24 [110/1011] via 10.0.2.99, eth0
O>* 200.0.1.0/24 [110/1011] via 10.0.2.99, eth0
O>* 200.0.2.0/24 [110/1011] via 10.0.2.99, eth0
C>* 10.0.2.0/24 is directly connected, eth0
C>* 100.0.2.0/24 is directly connected, eth1
C>* 50.0.1.2/32 is directly connected, lo
O 10.0.2.0/24 [110/10] is directly connected, eth0
   ------------------------
   ------------------------
B>* 50.0.1.3/32 [20/0] via 100.0.2.4, eth1
B>* 50.0.1.4/32 [20/0] via 100.0.2.4, eth1
B>* 50.0.1.5/32 [20/0] via 100.0.2.4, eth1
O>* 50.0.1.99/32 [110/11] via 10.0.2.99, eth0
   ------------------------
B>* 200.0.1.0/24 [20/0] via 100.0.2.4, eth1
B>* 200.0.2.0/24 [20/0] via 100.0.2.4, eth1
Quagga A - BGP routes comparison: ("show ip bgp")

* i 10.0.1.0/24 10.0.1.1 0 100 0 ?
*>     10.0.2.99 11   32768 ?
* i 10.0.2.0/24 10.0.1.99 2 100 0 ?
*>     0.0.0.0 1   32768 ?
* i 50.0.1.1/32 10.0.1.1 0 100 0 i
*>     10.0.2.99 1011   32768 ?
*   50.0.1.2/32 0.0.0.0 1   32768 ?
*>     0.0.0.0 0   32768 i
*>   50.0.1.3/32 10.0.2.99 1011   32768 ?
* i   100.0.1.3 0 333 0 65003 i
*   50.0.1.4/32 100.0.2.4 0 222 0 65004 i
*>     10.0.2.99 1011   32768 ?
* i   100.0.1.3 0 333 0 65003 65005 65004 i
*   50.0.1.5/32 100.0.2.4   222 0 65004 65005 i
* i   100.0.1.3 0 333 0 65003 65005 i
*>     10.0.2.99 1011   32768 ?
* i 50.0.1.99/32 10.0.1.99 2 100 0 ?
*>     10.0.2.99 11   32768 ?
* i 100.0.1.0/24 10.0.1.1 0 100 0 ?
*>     10.0.2.99 1011   32768 ?
*   100.0.2.0/24 100.0.2.4 0 222 0 65004 ?
*>     0.0.0.0 1   32768 ?
*   200.0.1.0 100.0.2.4   222 0 65004 65005 ?
*>     10.0.2.99 1011   32768 ?
* i   100.0.1.3 0 333 0 65003 ?
*   200.0.2.0 100.0.2.4 0 222 0 65003 ?
*>     10.0.2.99 1011   32768 ?
* i   100.0.1.3 0 333 0 65003 65005 ?
*> i 10.0.1.0/24 10.0.1.1 0 100 0 ?
   ------------------------
* i 10.0.2.0/24 10.0.1.99 2 100 0 ?
*>     0.0.0.0 1   32768 ?
*> i 50.0.1.1/32 10.0.1.1 0 100 0 i
   ------------------------
*   50.0.1.2/32 0.0.0.0 1   32768 ?
*>     0.0.0.0 0   32768 i
*>   50.0.1.3/32 100.0.2.4   222 0 65004 65005 65003 i
   ------------------------
*>   50.0.1.4/32 100.0.2.4 0 222 0 65004 i
   ------------------------
   ------------------------
*>   50.0.1.5/32 100.0.2.4   222 0 65004 65005 i
   ------------------------
   ------------------------
* i 50.0.1.99/32 10.0.1.99 2 100 0 ?
*>     10.0.2.99 11   32768 ?
   ------------------------
   ------------------------
*   100.0.2.0/24 100.0.2.4 0 222 0 65004 ?
*>     0.0.0.0 1   32768 ?
*>   200.0.1.0 100.0.2.4   222 0 65004 65005 ?
   ------------------------
   ------------------------
*>   200.0.2.0 100.0.2.4 0 222 0 65004 ?
   ------------------------
   ------------------------

Top of the page






If you liked our tutorials, don't hesitate to support us and visit our sponsors!
Si vous aimez nos tutoriaux, n'hésitez pas à nous supporter et visiter nos sponsors!
